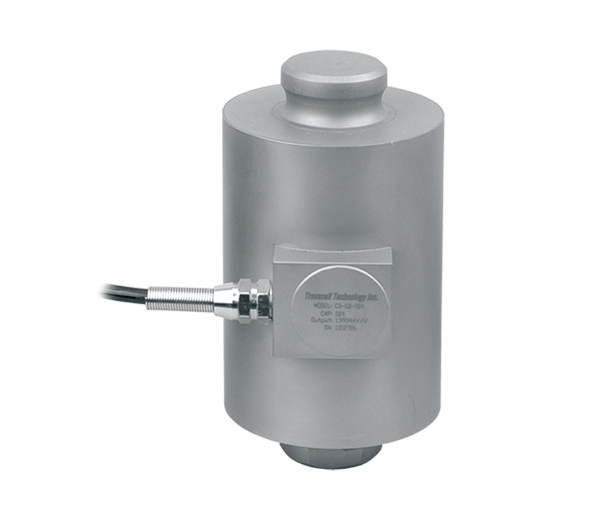

美國傳力 - 柱式傳感器
首頁 - 產(chǎn)品中心 - 美國傳力
| 量程 | SRE |
| 20t/30t (mm) | 160 |
| 50t (mm) | 305 |
| 額定輸出 | 2.0mV/V±0.1% | 可用溫度范圍 | -10℃to+70℃ |
| 零點平衡 | ±1%of rated output | 溫度補償范園 | -10℃to+40℃ |
| 蠕變 | ±0.03%of rated output | 安全載荷 | 150% |
| 非線性 | ±0.03%of rated output | 輸入阻抗 | 1120ohm±20 ohm |
| 滯后 | ±0.03%of rated output | 輸出阻抗 | 1000ohm±5ohm |
| 重復(fù)性 | ±0.03%of rated output | 絕緣阻抗 | ≥5000M ohm(50V DC) |
| 靈敏度溫漂 | ≤0.002% of applide output /℃ | 推薦激勵電壓 | 10V DC/AC |
| 零點溫度 | ≤0.002% of rated output /℃ | 激勵電壓 | 15V DC/AC |
| 導(dǎo)線長度 | 13m | 導(dǎo)線顏色 | GN(+E)BK(-E)WT(+S)RD(-S)BN(+SEN)BU(-SEN) |
